How to Calculate Superheat (Step-by-Step, With Target Ranges)

Superheat is how many degrees the refrigerant vapor has been heated above its boiling point at the current pressure. The formula is simple subtraction:

Superheat (°F) = suction-line temperature (°F) − saturation temperature (°F)

The saturation temperature comes off the refrigerant's pressure-temperature (P-T) chart — the boiling-point-versus-pressure data published by the refrigerant manufacturer. The suction-line temperature comes from your clamp probe. That's the entire calculation; the skill is in taking both readings correctly.

Worked example on R-410A: your low-side gauge reads 118.9 psig. The R-410A P-T chart says 118.9 psig saturates at 40°F. Your clamp thermometer on the suction line reads 51°F. Superheat = 51°F − 40°F = 11°F.

Here's an R-410A excerpt covering the suction pressures you'll actually see on a cooling call:

Saturation temp (°F)	R-410A pressure (psig)
20	78.7
25	87.8
30	97.5
32	101.6
35	107.9
40	118.9
45	130.7
50	143.3
55	156.6

Different refrigerant, different numbers — R-22, R-32, and R-454B all saturate at different pressures, so always use the chart for what's actually in the system.

Why superheat matters: it proves every drop of liquid refrigerant boiled off in the evaporator before reaching the compressor. Zero superheat means liquid is arriving at the compressor — that's slugging and oil dilution. Very high superheat means the coil is starved: capacity drops and the compressor runs hot, because on most hermetic compressors the suction vapor is what cools the motor.

Three tools, no substitutes:

• Low-side pressure reading — a gauge manifold or a wireless pressure probe on the suction service port. This gives you the pressure you'll convert to saturation temperature.
• Clamp-on thermometer — a pipe-clamp thermocouple or wireless temp probe that makes solid metal contact with the suction line. Don't use an infrared gun on bare copper; shiny copper has low emissivity and IR readings off it aren't trustworthy for a calculation that lives or dies on a few degrees.

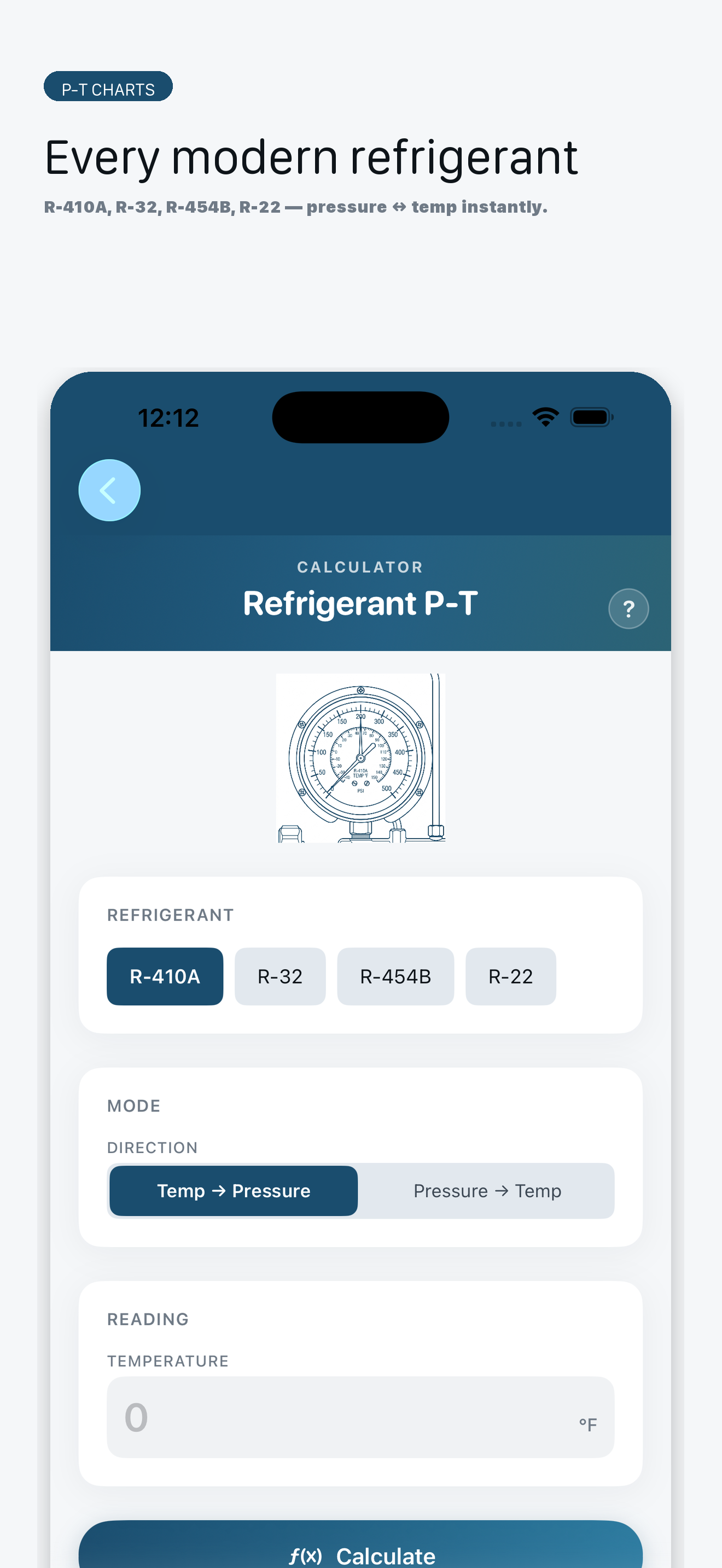

• P-T chart for the system's refrigerant — the paper slide card, the chart inside the condenser access panel, or an app.

One cheap extra that pays for itself: a strip of closed-cell foam insulation wrapped over the clamp probe, so outdoor air isn't biasing the line-temperature reading.

1. Run the system for at least 15 minutes. Pressures and temperatures drift for the first several minutes after startup; readings taken early are junk. The target-superheat method for fixed-orifice charging is also only considered valid with outdoor temperature above 65°F.
2. Connect the low-side gauge to the suction service port at the condensing unit.
3. Clamp the temperature probe to the suction line 4–6 in. from the compressor (or at the evaporator outlet if you're checking evaporator superheat on a TXV). Pick a clean, straight section of pipe, get firm metal-to-metal contact, and insulate the probe with closed-cell foam.
4. Read the suction pressure once the needle is steady.
5. Convert pressure to saturation temperature on the P-T chart. Example: 130.7 psig on R-410A = 45°F saturation.
6. Read the suction-line temperature from the clamp probe.
7. Subtract: line temperature − saturation temperature = superheat. If the line reads 57°F and saturation is 45°F, you have 12°F of superheat.

Take a second set of readings a few minutes later. If the two disagree by more than a degree or two, the system hasn't stabilized — or a TXV is hunting — and you should keep watching before you make any charge decision.

The target depends on the metering device, not the refrigerant:

Metering device	Target superheat	How to use it
Fixed orifice (piston, cap tube)	10–20°F, condition-dependent	Charge to the target-superheat chart. At 95°F outdoor / 67°F indoor wet-bulb, 10–15°F is typical.
TXV / EEV	8–12°F	The valve self-regulates to hold this range. Verify it, but charge by subcooling instead.

On a fixed-orifice system, superheat is your charging indicator — but the correct target moves with conditions. The real number comes from the target-superheat chart (printed inside many condenser panels or in the manufacturer's charging instructions), which crosses outdoor dry-bulb temperature against indoor wet-bulb. Depending on conditions the chart can call for anywhere from 5°F to the high 20s°F, which is why the flat "10–20°F" figure is a rule of thumb, not a spec.

On a TXV system, the valve throttles refrigerant flow to hold its superheat setpoint on its own, roughly 8–12°F. That means superheat won't tell you much about charge level — a TXV system that's moderately undercharged or overcharged can still show normal superheat. Confirm the valve is holding 8–12°F, then set the charge using subcooling per the data plate.

Reading	Likely causes	What it's doing to the system
High superheat (above ~20°F on a fixed orifice; a TXV pegged high)	Undercharge, liquid-line restriction (plugged filter-drier, kinked line), underfeeding TXV, unusually high indoor heat load	Starved evaporator, lost capacity, compressor running hot on thin suction vapor
Low superheat (below ~5°F)	Overcharge, low indoor airflow (dirty filter, dirty evaporator coil, slow blower), TXV stuck open or overfeeding	Flooded evaporator, liquid floodback diluting compressor oil, risk of compressor damage

A few field rules:

• High superheat = starved coil. Not enough refrigerant is reaching the evaporator for the load. Before condemning the charge, rule out a restriction — a plugged drier will starve the coil with a full charge in the system.
• Low superheat = flooded coil. Too much refrigerant, or not enough heat getting to it. Check airflow first: a dirty filter or matted evaporator coil drops the heat load and drags superheat down without anything being wrong with the charge.
• One number is not a diagnosis. Read superheat and subcooling together, verify airflow, and check both against the manufacturer's charging chart before you recover or add a single ounce of refrigerant.
